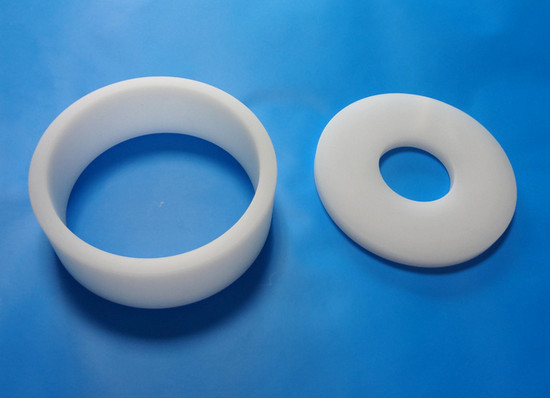

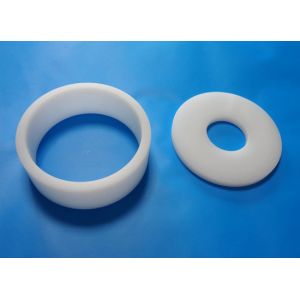

opaque plate quartz fused silica circular transparent quartz glass flange annulus

Place of Origin : China

Brand Name : WZ

Certification : CE

Model Number : CY09

MOQ : 2 pcs

Price : US$12.0-60.0/pc

Packaging Details : carton case with foam

Delivery Time : 6 days

Payment Terms : t/t,WESTERN UNION

Supply Ability : 4000pcs/month

product name : milky quartz glass ring flange

material : fused quartz or silica glass

Contact Now

opaque silica quartz disc

1. high purity >99.9%
2. high transmission
3. high temperature resistant.

Polished opaque quartz Glass Plate

opaque silica quartz disc

Product Description

High Temperature Clear Quartz Glass Plate

Chemical composition (unit:ppm)

Al	Fe	K	Na	Li	Ca	Mg	Cu	Mn	Pb	B	Ti
20	1.0	3.5	3.5	1.0	2.0	0.5	0.3	0.5	<0.01	<0.2	2.0

Physical Properties:

Density 20°CKg X m-3(X 103)	2.2
Coefficient of expansion 25-300°C°C-1(X 10-6)	0.56
Softening point(°C)	1710
Annealing point(°C)	1230
Strain point(°C)	1140
Youngs modulus(Pa)	7.5X105

1. Material properties
High Corrosion Resistance
Broad Transmission Spectrum
Low Thermal Expansion Coefficient
Both side polished
Can work long time with 1100° C
2. Use:
Wieldy used in medical, electronic instrument, scientific research, optical industry etc.
3. Shape:
round, square, rectangular and various shapes are available.

Size and thickness:
Square type
100mmx100mmx(thickness 1mm-30mm)
150mmx150mmx(thickness 1mm-30mm)
200mmx200mmx(thickness 1mm-30mm)
200mmx400mmx(thickness 1mm-30mm)
300mmx300mmx(thickness 1mm-30mm)
400mmx400mmx(thickness 1mm-30mm)
Circular shape
Diameter 50mmx(thickness 1mm-30mm )
Diameter 100mmx(thickness 1mm-30mm )
Diameter 150mmx(thickness 1mm-30mm )
Diameter 198mmx(thickness 1mm-30mm )
Besides above size ,other can be made according to customers’detailed requirements.
